Bodine - Emergency Lighting

    Extended-temp for indoor and outdoor applications

    March 2018

    Introducing the BSL4SB and BSL8SB emergency LED drivers

    Your solution for challenging environments

    The new Philips Bodine BSL4SB and BSL8SB emergency LED drivers support emergency lighting operation in an extended-temperature range of -20° C to +55° C and feature a separate battery configuration, which, along with the drivers’ small size, allows for superb installation flexibility. Both emergency drivers are UL Listed for the U.S. and Canada. They are compatible with LED strips from a variety of manufacturers and are Class 2 emergency drivers that work in conjunction with the normal AC LED driver.

    The BSL4SB and BSL8SB universal input (120-277 V) emergency LED drivers work in conjunction with an AC LED driver that has an output current not to exceed 3.0 A. They consist of a high-temperature sealed lead acid battery, charger and electronic circuitry in one case.* The emergency drivers deliver 4W or 8W, depending on the model, to an LED load (measured at nominal battery voltage) for 90 minutes. If used in an emergency-only fixture, no AC driver is necessary.They are suitable for indoor and outdoor applications, including damp locations. For more information about specific LED and AC driver compatibility, please call the factory at 888.263.4638.


    The BSL4SB provides up to 500 lumens in emergency mode, while the BSL8SB provides up to 1000 lumens in emergency mode.** When AC power fails, the emergency drivers immediately switch to emergency mode, operating the LEDs at a reduced lumen output for a minimum of 90 minutes. When AC power is restored, the emergency driver automatically returns to the charging mode.

    * Suitable for use in sealed fixtures only when properly vented.
    ** Based on a min efficacy of 130 lumens/watt of load power.

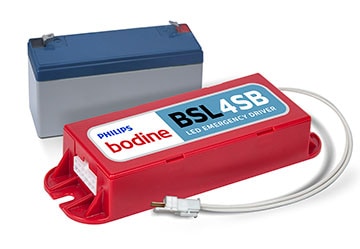

    Bodine - BSL4Sb

    Highlights

    • Suitable for extended-temperature operation (-20°C to +55°C / -4°F to 131°F)
    • Feature separate battery configuration
    • Include proprietary charging technology designed for low energy consumption
    • Meet CEC Title 20 (California Energy Commission) efficiency standards
    • IP67 rated 2W-ITS
    • Class 2 output - UL 1310 Certified, CSA 22.2 No 223-M91 compliant
    • Dimensions for enclosure (excluding battery): 167 mm x 57 mm x 30 mm
