    SolarForm Gen3 Off-Grid

    All In One solar street and area light for off-grid applications

    View all 8 products Gardco
    SolarForm Gen3 Off-Grid
    Close filters Show filters
    Show more filters
    Show less filters
    • Compare products
    • Wattage (W)
    • Luminous flux (lm)
    • CCT (K)
    • IES / Quick Calculator
    • Spec Sheet

    Sort by:

        Downloads
        Specification Sheets
        Additional Literature
        Visuals
        Photometry/BIM Files

        Product family information

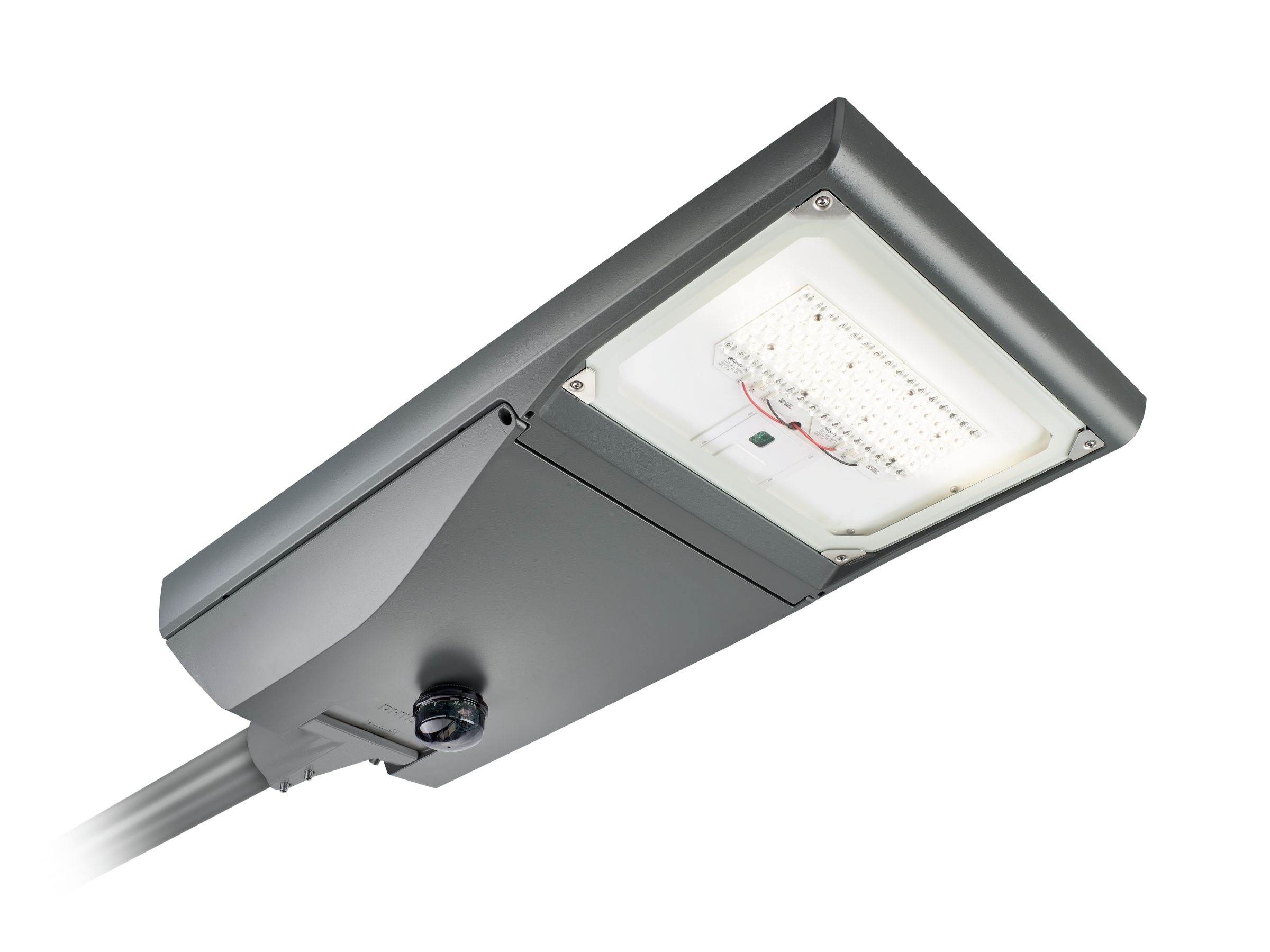

        Gardco SolarForm Gen 3 Off-Grid is an integrated solar lighting solution designed to provide high-quality illumination and reliable performance in remote or power-scarce environments or when trenching is not possible. It features an LED light integrated with a solar photovoltaic panel and a robust battery storage system, managed by a smart controller to maximize efficiency. This system is engineered to ensure continuous illumination solely based on solar power, tailored to local solar conditions and night-time activities. It includes enhanced battery capacity to maintain consistent lighting throughout the night, eliminating any dependency on grid connectivity. This makes it ideal for areas where grid electricity is unavailable, unreliable, or costly.

        Benefits

        Brings light to areas without access to electric grid
        Preserves landscape as no trenching for cabling required
        Sturdy construction for long life
        Saves energy
        Environmentally friendly
        Programmable dimming profiles for maximum flexibility
        Easy installation and cost saving

        Features

        Up to 9,000 lumens output
        MPPT and charge controller for maximum efficiency
        High efficiency, integrated mono-crystalline PV panel
        Bluetooth module for easy monitoring and configuration from bottom of pole via Service Tag app
        Replaceable spare parts for maintenance via Service Tag app
        Tool-less opening of top housing via clips for easy access to components
        Two mounting options, post-top and side entry via same spigot
        Optional multi-sensor for light on demand and forward triggering
        Optional Top-up vertical PV panel to increase the power generation without replacing the whole unit
        Replaceable Lithium Iron Phosphate battery for long life and hassle free operations
        Specially designed pole mounting bracket with adjustable tilt angles of 0 to 15 degrees, which can also be used in post top & lateral mounting positions
        Advanced RTE (run time extension) technology for run time maximization

        Applications

        Parks, pedestrian path lighting
        Shopping centers, campuses, plazas
        Rural areas
        Industries, office, schools
        Parking lots
        Cycle paths
        Bus stops
        Residential
