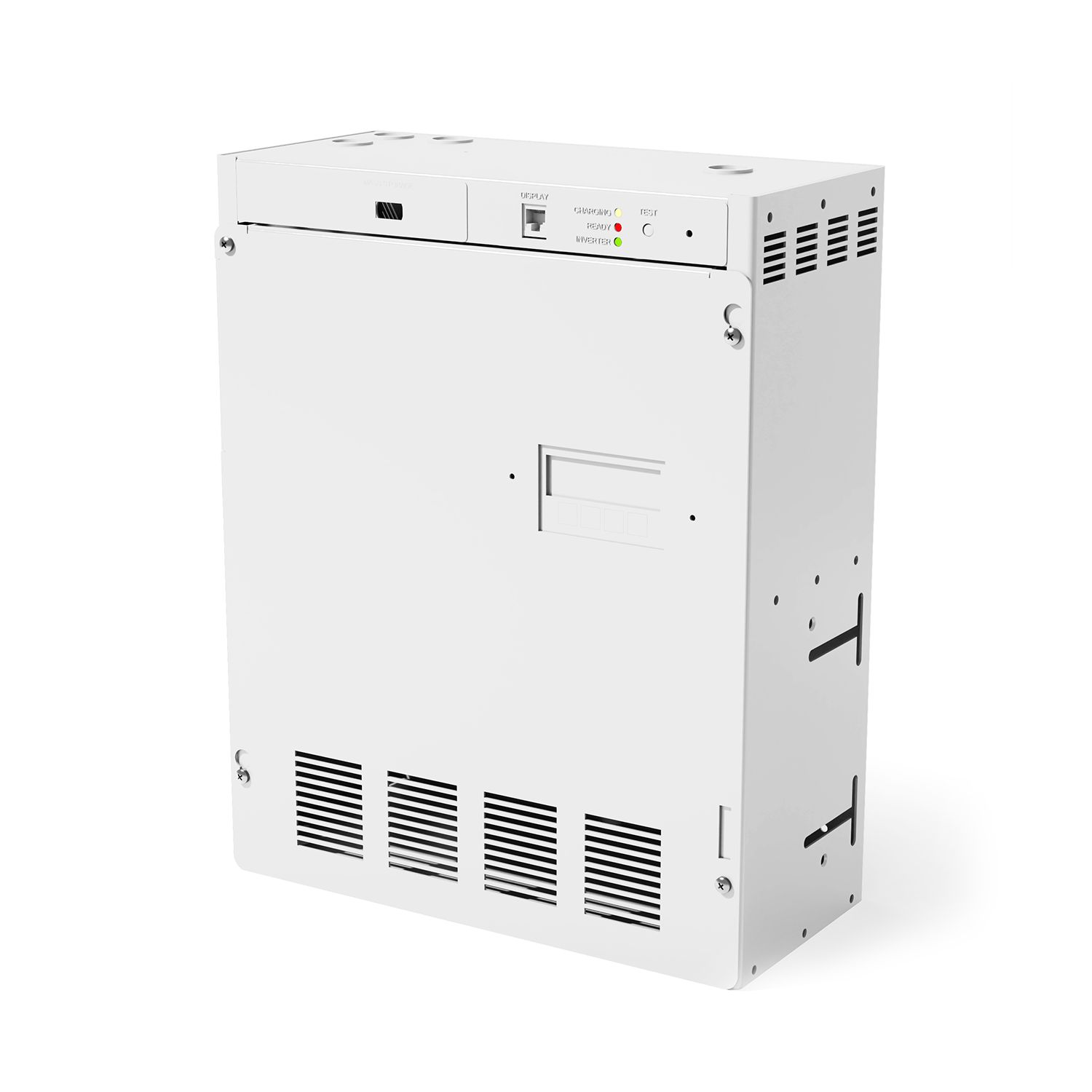

        The CHUPS-G2 series by Chloride is a high-performance single-phase mini inverter system designed to meet critical power requirements, offering a power range of 175VA/W to 1100VA/W. Engineered for reliability, this system is UL924 listed and compatible with LED, fluorescent, incandescent and halogen lamp loads, while providing a standard runtime of 90 minutes. Equipped with advanced features and configurable options, the CHUPS-G2 series supports multiple communication protocols, making it an ideal solution for a wide range of applications.

        Benefits

        Single Phase Mini Inverter
        UL924 listed
        175A/W to 1100VA/W
        Provides 90 minutes of emergency AC power
        Compatible with LED, fluorescent, incandescent and halogen lamp loads
        Small footprint, wall mount units
        PWM/MOSFET Technology provides pure sine wave power and 8 to 25ms transfer time
        Maintenance free VRLA batteries
        Self-diagnostics standard
        Field selectable 120VAC or 277VAC input and output voltage
        3-Year standard limited warranty includes all parts. Up to 10 years prorated warranty on batteries.

        Features

        90 Minutes of emergency run time with extended run time tables
        UL924 listed
        PWM/MOSFET Technology provides pure sine wave emergency power with a 8ms to 24ms nobreak transfer time
        Single phase. uninterruptible power supply
        Long-life, maintenance free Valve Regulated Lead Acid (VRLA) batteries
        Microprocessor controlled, 3-stage battery charger
        Low battery voltage disconnect protects batteries against deep discharge
        Self-testing/self-diagnostics standard in all models
        High crest factor and inrush capabilities
        Operates Normally-On, Normally-Off and Switched fixtures
        Space-saving, durable steel compact cabinet

        Applications

        Office
        Education
        Healthcare
        Hospitality
        Retail
        Industrial
        Manufacturing
