Capacitors for HID lamp circuits
PHILIPS PLEX CP 25BU28
Product Description
PHILIPS PLEX CP 25BU28
Order code:
913710012291
Full order code:
697480505047500
Specifications
Expand all
Operating and Electrical
Input Voltage
250 V
Line Frequency
50 to 60 Hz
Input Frequency
50 to 60 Hz
Wiring
Connector Type Output Terminals
push in connector or insulated wires or flat quick-connector
Mechanical and Housing
Housing
M8x10
Net Weight (Piece)
0.081 kg
Approval and Application
Approval Marks
Conform GB18489-2001
Conform GB/T18504-2001
CE marking
VDE certificate
China Quality Certificate
CB Certificate
Ambient temperature range
-40 °C to 85 °C
Product Data
Order product name
CP 25BU28
Full product name
CP 25BU28
Full product code
697480505047500
Order code
913710012291
Material Nr. (12NC)
913710012291
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
6974805050475
Numerator - Packs per outer box
90
EAN/UPC - Case
6974805050482
Installation diagrams
CP 25CU28
download

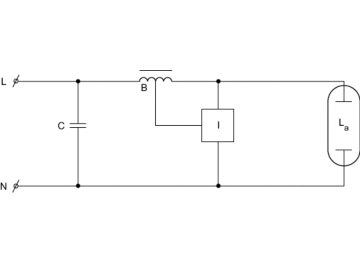

GDWD_CASHID-Wiring diagram
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 913710012291 en_AA
pdf 687.8 kB
Visuals
Product-Photographs-913710012291_EU
Multiple assets
Product-Diagrams-913710012291_EU
Multiple assets
