PL-L

Philips CorePro, LED, PL-L, 560.3 mm, 17 W, 3500 K, 2100 lm, 50000 hour(s)

Name: Philips CorePro, LED, PL-L, 560.3 mm, 17 W, 3500 K, 2100 lm, 50000 hour(s)
Brand: Philips
SKU: 929003097604
Availability: InStock

17PL-L/COR/22-835/MF22/G/4P 10/1

Popular downloads

Product leaflet pdf 800.5 kB
IES IES 19.7 kB
Product-Photographs-929003097604_EU ZIP
Product-Diagrams-929003097604_EU ZIP

View all downloads

Product Description

CorePro, LED, PL-L, 560.3 mm, 17 W, 3500 K, 2100 lm, 50000 hour(s), 123.00 lm/W, 2G11, Glass

Order code: 929003097604

Cap-Base
2G11
Nominal lifetime
50,000 hour(s)
Switching Cycle
50,000
Lighting Technology
LED

Philips CorePro, LED, PL-L, 560.3 mm, 17 W, 3500 K, 2100 lm, 50000 hour(s)

17PL-L/COR/22-835/MF22/G/4P 10/1

Product Description

Specifications

Dimension Drawing (with table) - 17PL-L/COR/22-835/MF22/G/4P 10/1

2G11

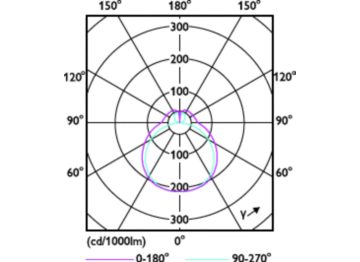

Light Distribution Diagram - 17PL-L/COR/22-835/MF22/G/4P 10/1

General uniform lighting - 17PL-L/COR/22-835/MF22/G/4P 10/1

Spectral Power Distribution Colour - 17PL-L/COR/22-835/MF22/G/4P 10/1

Lumen Maintenance Diagram - 17PL-L/COR/22-835/MF22/G/4P 10/1

Life Expectancy Diagram

LEDtube COR PLL 17W 50K FailureRate-LED

Lumen Maintenance Diagram - 17PL-L/COR/22-835/MF22/G/4P 10/1

LEDtube COR PLL 17W 50K LifetimeVsTc-LED
