TrueForce LED Industrial and retail Mains (Highbay – HPI/SON/HPL)

Philips LED, T-shape T140, Mains only, 55 W, E27, 6500 K, 5500 lm, 15000 hour(s)

Name: Philips LED, T-shape T140, Mains only, 55 W, E27, 6500 K, 5500 lm, 15000 hour(s)
Brand: Philips
SKU: 929004299910
Availability: InStock

Entry LED HPI MV 5.5Klm 55W 865 E27

Popular downloads

Product leaflet pdf 772.8 kB
IES ies 5.5 kB
Product-Photographs-929004299910_EU ZIP
Product-Diagrams-929004299910_EU ZIP

View all downloads

Product Description

LED, T-shape T140, Mains only, 55 W, E27, 6500 K, 5500 lm, 15000 hour(s), 100 lm/W, RG1

Order code: 929004299910

Full order code: 694197064920900

Cap-Base
E27
Nominal lifetime
15,000 hour(s)
Switching Cycle
50,000
Lighting Technology
LED
Warranty period
1 years

Philips LED, T-shape T140, Mains only, 55 W, E27, 6500 K, 5500 lm, 15000 hour(s)

Entry LED HPI MV 5.5Klm 55W 865 E27

Product Description

Specifications

E27

Dimension Drawing (with table) - Entry LED HPI MV 5.5Klm 55W 865 E27

General uniform lighting - Entry LED HPI MV 5.5Klm 55W 865 E27

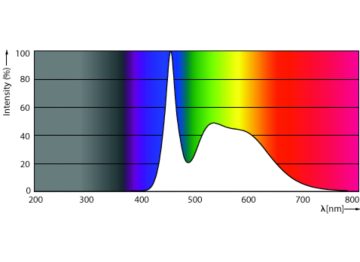

Spectral Power Distribution Colour - Entry LED HPI MV 5.5Klm 55W 865 E27

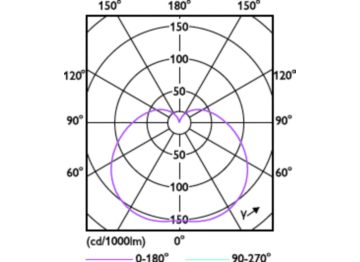

Light Distribution Diagram - Entry LED HPI MV 5.5Klm 55W 865 E27

Life Expectancy Diagram

Lumen Maintenance Diagram - Entry LED HPI MV 5.5Klm 55W 865 E27
