Philips FlexBlend Recessed, 23.5 W, 1350x300 mm, FLC, 4200 lm, 4000 K, Wireless, Interact Ready, UGR19, U4, TP(b), EL-DC

RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC

Product Description

1350x300 mm, FineLine ceiling version, Steel, White, Signal white (RAL9003), Sensor ready driver Interact System ready for central emergency lighting, Upgradable sensor slot with SC200 sensor, 4200 lm, 23.5 W, 177 lm/W, 4000 K, (0.38, 0.38) SDCM <3, UGR19, L65≤3000 cd/m², Wide beam, Diffused lens optic, Polymethyl methacrylate, IP20 | Finger-protected, IK03 | 0.3 J, Safety class I, Push-in connector and pull relief, TP(b) diffuser flammability class, SC | Safety cable, DC operated central emergency lighting

Order code: 910505105991
Full order code: 872110335024400

Specifications

  • Number of gear units
    1 unit
  • Driver included
    Yes
  • Service tag
    Yes
  • Value ladder
    Performance
  • Warranty period
    5 years

Downloads

Leaflets

Tendertext
Tender text - RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC txt 4.2 kB
Product leaflet
Localized commercial leaflet 910505105991 en_AA pdf 369.8 kB

Brochures

Install instructions
FlexBlend_RC340B_VPC_CPC_MI_SLR pdf 3.4 MB

Visuals

Product-Photographs-910505105991_EU
Multiple assets

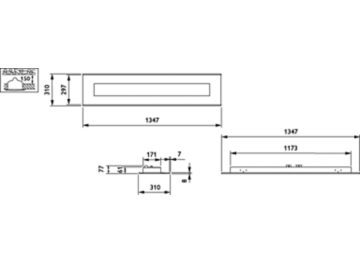

Product-Diagrams-910505105991_EU
Multiple assets

Photometry and Lighting design

IES
IES File - RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC IES
Revit file
Revit file - RC340BI - 910505105991 REVIT
Dialux
ULD File - RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC ULD
Relux
ROLF File - RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC ROLFZ
LDT
LDT File - RC340B 42S/840 SEIA W30L135 FLC4DLOU4SC LDT
