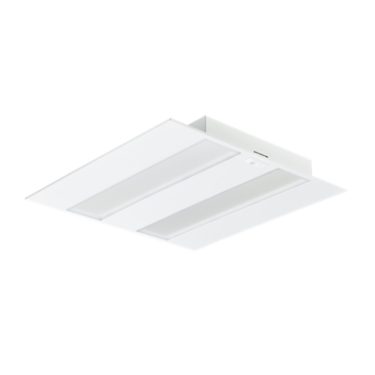

Philips FlexBlend Recessed, 26 W, 600x600 mm, VPC, 3600 lm, 4000 K, CRI>90, Wireless, Interact Ready, UGR19, U4, TP(b), EL-DC

RC340B 36S/940 SEIA W60L60 VPC MXO U4

Product Description

600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Sensor ready driver Interact System ready for central emergency lighting, Upgradable sensor slot with SC200 sensor, 3600 lm, 26 W, 194 lm/W, 4000 K, (0.38, 0.38) SDCM <3, CRI>90, UGR19, Wide beam, Micro-hexagonal optic, Polycarbonate, IP20 | Finger-protected, IK03 | 0.3 J, Safety class I, Push-in connector and pull relief, TP(b) diffuser flammability class, DC operated central emergency lighting

Order code: 910505105985
Full order code: 872110335018300

Specifications

Number of gear units
1 unit
Driver included
Yes
Service tag
Yes
Value ladder
Performance
Warranty period
5 years

Downloads

Leaflets

Tendertext
Tender text - RC340B 36S/940 SEIA W60L60 VPC MXO U4 txt 4.1 kB
Product leaflet
Localized commercial leaflet 910505105985 en_AA pdf 546.1 kB

Brochures

Install instructions
FlexBlend_RC340B_VPC_CPC_MI_SLR pdf 3.4 MB

Visuals

Product-Photographs-910505105985_EU
Multiple assets - Visuals
Product-Diagrams-910505105985_EU
Multiple assets - Visuals

Photometry and Lighting design

IES
IES File - RC340B 36S/940 SEIA W60L60 VPC MXO U4 IES
Revit file
RC340B 36S/940 SEIA W60L60 VPC MXO U4 910505105985 ZIP
Dialux
ULD File - RC340B 36S/940 SEIA W60L60 VPC MXO U4 ULD
Relux
ROLF File - RC340B 36S/940 SEIA W60L60 VPC MXO U4 ROLFZ
LDT
LDT File - RC340B 36S/940 SEIA W60L60 VPC MXO U4 LDT
