MasterColor CDM ED23 1/2 Elite
Philips CDM100/U/PS/4K ED23.5 - Elite
Product Description
Philips CDM100/U/PS/4K ED23.5 - Elite
Order code:
928601178401
Specifications
Expand all
General Information
Cap-Base
E39 [Single Contact Mogul Screw]
Operating Position
UNIVERSAL [Any or Universal (U)]
Features
ELITE
Life to 50% Failures (Nom)
20,000 hour(s)
Light Technical
Color Code
940 [CCT of 4000K]
Color Designation
Cool White (CW)
Chromaticity Coordinate X (Nom)
0.378
Chromaticity Coordinate Y (Nom)
0.370
Correlated Color Temperature (Nom)
4180 K
Luminous Efficacy (Rated) (Min)
90 lm/W
Luminous Efficacy (rated) (Nom)
104 lm/W
Color rendering index (CRI)
90
Operating and Electrical
Power Consumption
100.4 W
Lamp Current (Nom)
1.10 A
Voltage (Nom)
102 V
Mechanical and Housing
Bulb Finish
Clear
Bulb Material
Hard Glass
Bulb Shape
ED-23 1/2
Net Weight (Piece)
0.001 kg
Approval and Application
Mercury (Hg) Content (Max)
9.9 mg
Product Data
Order product name
CDM100/U/PS/4K ED23.5 - Elite
Full product name
CDM100/U/PS/4K ED23.5 - Elite
Order code
928601178401
Material Nr. (12NC)
928601178401
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
046677430689
Numerator - Packs per outer box
12
EAN/UPC - Case
50046677430684
Installation diagrams
E39
download
Dimension Drawing (with table) - CDM100/U/PS/4K ED23.5 - Elite
download
any
download
Performance diagrams

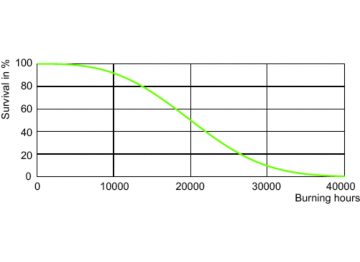

LDLE_D-CDM-PS_0002-Life expectancy diagram
download

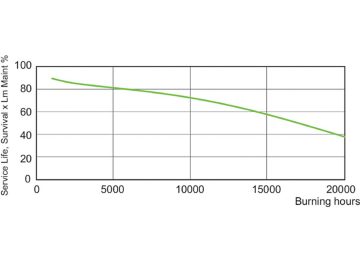

LDSL_D-CDM-PS_0002-Service Lifetime
download

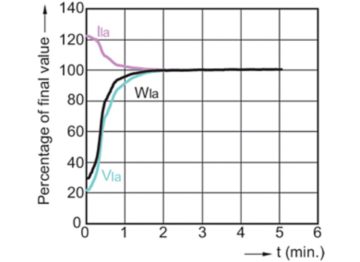

Lamp Performance During Run-up - CDM100/U/PS/4K ED23.5 - Elite
download

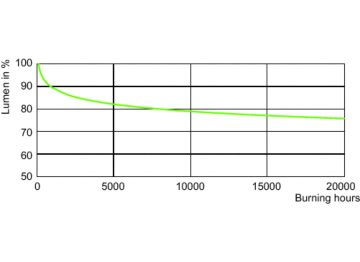

Lumen Maintenance Diagram - CDM100/U/PS/4K ED23.5 - Elite
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 928601178401 en_AA
pdf 1.2 MB
Visuals
Product-Photographs-928601178401_EU
Multiple assets
Product-Diagrams-928601178401_EU
Multiple assets
