    ModuLyte

    ModuLyte

    Flexibility at your fingertips



    Benefit from quality commercial downlights and cylinders equipped for renovation, retrofit, and new construction projects with ModuLyte. Meeting job timelines, staying within budget, and navigating challenging decisions gets easier with a modular design that puts flexibility at your fingertips.​

    Family features:



    • Lumen selectable switch
    • CCT selectable switch
    • Easy to install
    • Retrofit compatible
    • Optional frame
    • Field-interchangeable optics
    • Variety of accessories

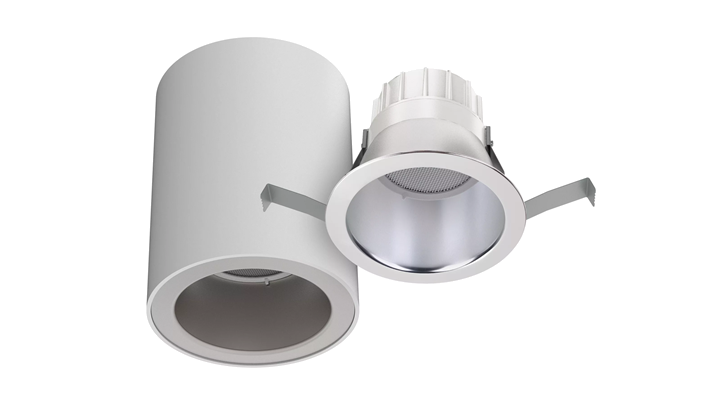

    Modulyte cylinder downlight

    Family Benefits

    ModuLyte offers an optimal balance of field flexibility, performance, and commercial appeal.​



    • Contractor-grade installation​
    • Commercial aesthetics
    • Flexible for new construction and retrofit applications​
    • Made for office, institutional, general healthcare, retail and multi-purpose spaces

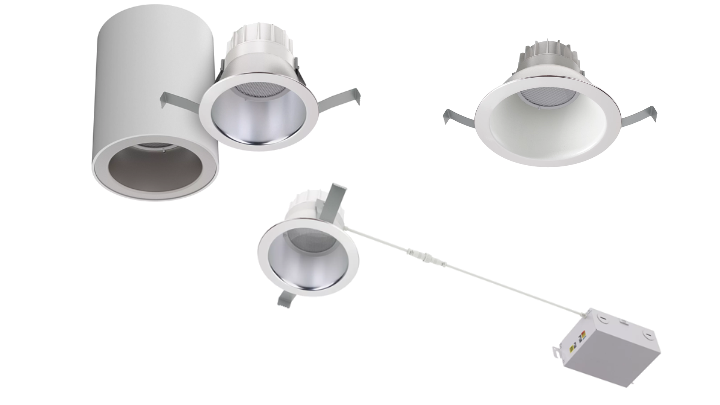

    Modulyte combo

    Additional Features

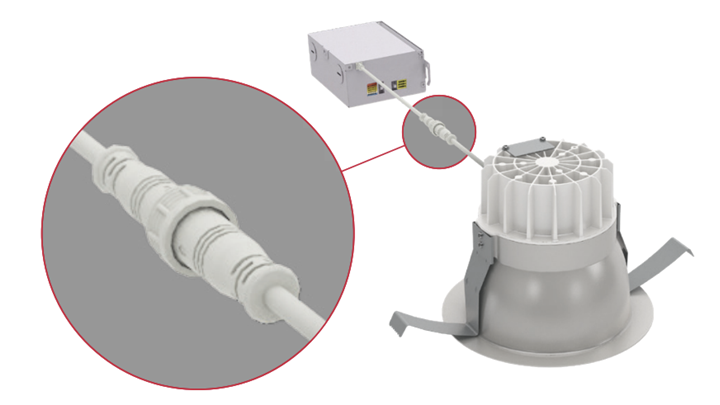

    Connector

    Navigate challenging deadlines with the help of ModuLyte's contractor-friendly install:



    • Quick connect:

    Low voltage plenum-rated cable screws together with twist-lock to attach driver to light engine

    • Retention spring:

    Easy installation and maintenance

    • Easy access:

    To driver after installation

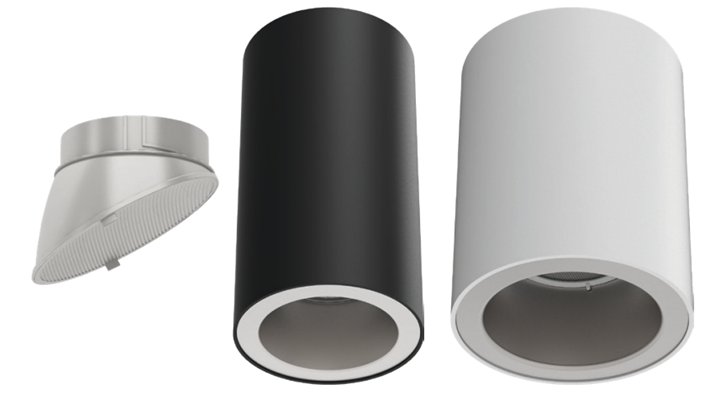

    Cylinders

    Be equipped with commercial-grade options on day one for renovation, retrofit, and new construction



    • Apertures:

    Round 4", & 6", Round 8" (downlight only)

    • Frames:

    Frame is optional for downlights

    • Optics:

    Interchangeable beams and wall wash

    • Mounting:

    Surface or suspended mounting plates included with cylinder, suspended requires cable or pendant stem accessory.

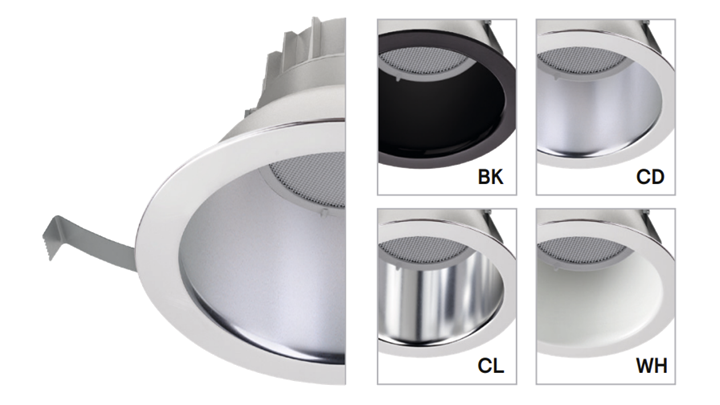

    Trims

    Providing core commercial performance, aesthetics and flexibility needed on commercial projects



    • Aperture:

    4" & 6" apertures: Great for open ceiling and surface mount application needs 8" Downlight: Retrofit-friendly solution

    • Beams:

    Wide and Medium, Asymmetric Wall Wash

    • Finishes:

    Specular Clear, Comfort Clear Diffuse, White, Black

    • Cylinder Finishes:

    White, Black

    • Reflector Flanges:

    White, Black, Polished (matches aperture)

    Industry leading AccuRender CRI 90 color rendering



    AccuRender ensures high fidelity color rendering and enhanced reds meeting TM30 fidelity and color preference ratings. AccuRender optimizes color quality while increasing efficacy 15-20% higher than typical CRI90 products at comparable lumen packages*.



    *Based on spec sheet analysis of leading competitors



    Download AccuRender Brochure

    Product detail and downloads

    Download spec sheet, bulletin, IES, and installation sheets.
    ModuLyte

    Downlights and cylinders
