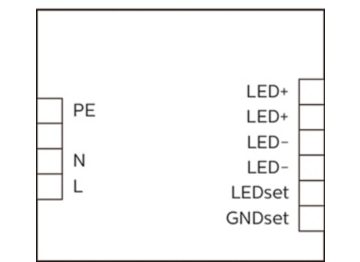

Philips Xitanium 150W 0.2-0.7A 300V iXt 230V

929001506706-Xitanium-150W-200mA-700mA-300V-iXt-230V-BS-angle

Popular downloads

View all downloads

Product Description

Philips Xitanium 150W 0.2-0.7A 300V iXt 230V

Order code: 929001506706

Full order code: 871869655589700

Nominal lifetime
100,000 hour(s)
Lighting Technology
LED
Isolation Class
Non-isolated

Line Frequency
50 to 60 Hz
Input Frequency
50 to 60 Hz
Mains voltage operation (DC)
168-275 V
Total Harmonic Distortion IEC (Max)
20 %
Power Consumption
158 W
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
95.1 %
Output Current (Max)
700 mA
Output Current (Nom)
450 mA
Output Current Tolerance (Max)
5 %
Mains voltage performance (DC)
186-250 V
Power Factor (Fraction)
0.9
Open Circuit Voltage (DC) (Max)
330 V
Protection Level Up (L-N) at 5 kA (Max)
2 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
4 kV
Input Current (Nom)
700 mA
Input current (AC)
700 mA
Input current (DC)
650 mA
Inrush Current Peak (Max)
11 A
Inrush Current Peak (Nom)
11 A
Output Power (Max)
150 W
Output Power (Nom)
150 W
Default output current
200 mA
Inrush Current Width to 50% of Peak
63 µs
Power Factor 100% Load (Max)
0.9
Energy Metering
No
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
False
Output Power (Min)
43 W
Output Current (Min)
200 mA
Output Voltage (Max)
300 V
Output Voltage (Min)
100 V
Number of Products on MCB (16A Type B) (Max)
18
Number of Products on MCB (16A Type-C) (Max)
18 piece/unit
Protection class IEC
Safety class I
Surge Protection (Common/Differential)
EN61547 (L-L 2kV, L-G 4kV) kV
Adjustable Output Current
LEDSet/Resistor SimpleSet/NFC
