EB-T Electronic ballasts for TL-D lamps (India)
Philips EBT 236 TLD
Product Description
Philips EBT 236 TLD
Order code:
913702244912
Full order code:
871150099640400
Specifications
Expand all
Operating and Electrical
Input Voltage
220 to 240 V
Line Frequency
50 to 60 Hz
Input Frequency
50 to 60 Hz
Wiring
Connector Type Input Terminals
WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector Type Output Terminals
WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Temperature
T-Case Maximum (Max)
75 °C
Mechanical and Housing
Net Weight (Piece)
0.205 kg
Approval and Application
Energy Efficiency Index
A3
Safety Standard
IEC 61347-2-3
Approval Marks
CE marking
S Mark
Ambient temperature range
0 °C to 50 °C
Product Data
Order product name
EBT 236 TLD
Full product name
EBT 236 TLD
Full product code
871150099640400
Order code
913702244912
Material Nr. (12NC)
913702244912
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8711500996404
Numerator - Packs per outer box
6
EAN/UPC - Case
8727900078404
Installation diagrams
EBT 236 TLD
download

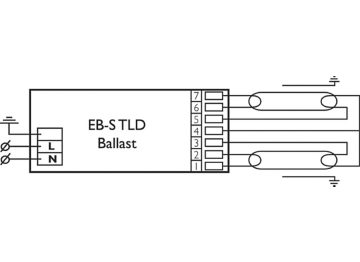

GDWD_INEFLU01_0014-Wiring diagram
download
