MasterClass MainsFit (UL Type-B) T8

Philips MasterClass, LED, T8, 1200 mm, 16.5 W, 4000 K, 2500 lm, 70000 hour(s)

Name: Philips MasterClass, LED, T8, 1200 mm, 16.5 W, 4000 K, 2500 lm, 70000 hour(s)
Brand: Philips
SKU: 929003525904
Availability: InStock

16.5T8/MAS/48-840/MF25/P/DIM 25/1

Popular downloads

Product leaflet pdf 827.0 kB
Install instructions pdf 1.3 MB
IES IES 20.6 kB
Product-Photographs-929003525904_EU ZIP
Product-Diagrams-929003525904_EU ZIP

View all downloads

Product Description

MasterClass, LED, T8, 1200 mm, 16.5 W, 4000 K, 2500 lm, 70000 hour(s), 151.00 lm/W, G13, Plastic

Order code: 929003525904

Cap-Base
G13
Nominal lifetime
70,000 hour(s)
Switching Cycle
50,000
Lighting Technology
LED

Philips MasterClass, LED, T8, 1200 mm, 16.5 W, 4000 K, 2500 lm, 70000 hour(s)

16.5T8/MAS/48-840/MF25/P/DIM 25/1

Product Description

Specifications

Medium Bi-Pin Fluorescent Tube, double-ended Frosted

General uniform lighting - 16.5T8/MAS/48-840/MF25/P/DIM 25/1

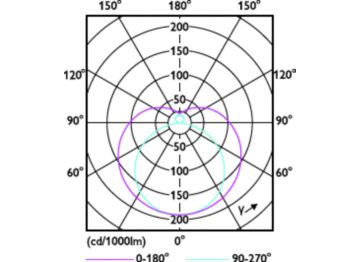

Light Distribution Diagram - 16.5T8/MAS/48-840/MF25/P/DIM 25/1

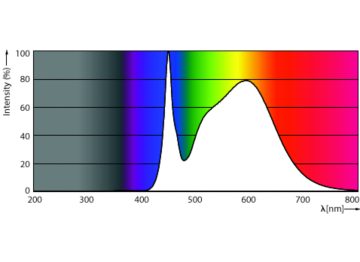

Spectral Power Distribution Colour - 16.5T8/MAS/48-840/MF25/P/DIM 25/1

Life Expectancy Diagram

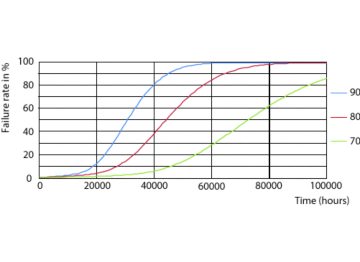

FailureRate

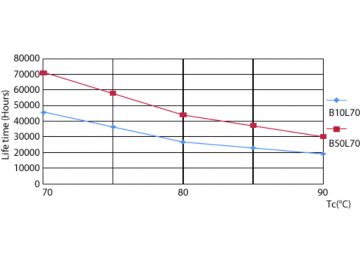

LifetimeVsTc

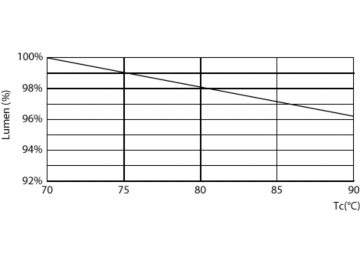

Lumen Maintenance Diagram - 16.5T8/MAS/48-840/MF25/P/DIM 25/1

Lumen Maintenance Diagram - 16.5T8/MAS/48-840/MF25/P/DIM 25/1
