MasterClass InstantFit (UL Type-A) T8

Philips MasterClass, LED, T8, 1200 mm, 15.5 W, 5000 K, 2500 lm, 70000 hour(s)

Name: Philips MasterClass, LED, T8, 1200 mm, 15.5 W, 5000 K, 2500 lm, 70000 hour(s)
Brand: Philips
SKU: 929002016504
Availability: InStock

15.5T8/MAS/48-850/IF25/P/DIM 25/1

Popular downloads

Product leaflet pdf 776.0 kB
Install instructions pdf 5.3 MB
IES IES 5.0 kB
Product-Photographs-929002016504_EU ZIP
Product-Diagrams-929002016504_EU ZIP

View all downloads

Product Description

MasterClass, LED, T8, 1200 mm, 15.5 W, 5000 K, 2500 lm, 70000 hour(s), 161 lm/W, G13, Plastic

Order code: 929002016504

Cap-Base
G13
Nominal lifetime
70,000 hour(s)
Switching Cycle
50,000
Lighting Technology
LED

Philips MasterClass, LED, T8, 1200 mm, 15.5 W, 5000 K, 2500 lm, 70000 hour(s)

15.5T8/MAS/48-850/IF25/P/DIM 25/1

Product Description

Specifications

Medium Bi-Pin Fluorescent Tube, double-ended Frosted

General uniform lighting - 15.5T8/MAS/48-850/IF25/P/DIM 25/1

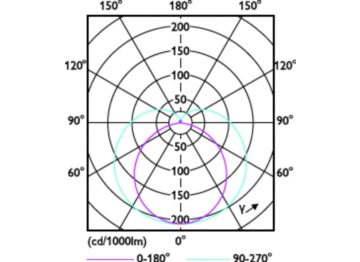

Light Distribution Diagram - 15.5T8/MAS/48-850/IF25/P/DIM 25/1

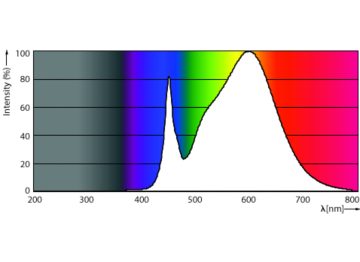

Spectral Power Distribution Colour - 15.5T8/MAS/48-850/IF25/P/DIM 25/1

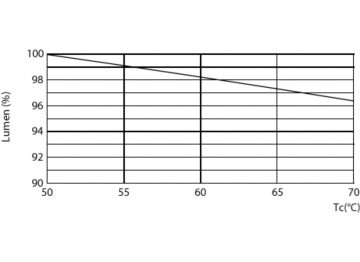

Lumen Maintenance Diagram - 15.5T8/MAS/48-850/IF25/P/DIM 25/1

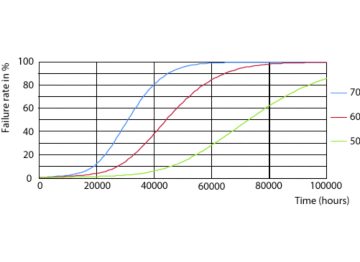

LEDtube 15,5W G13 T8 FailureRate

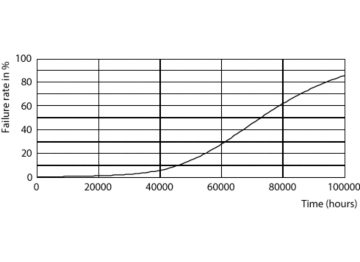

LEDtube 15,5W G13 T8

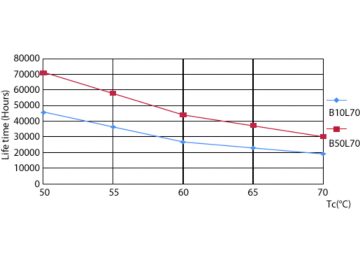

LEDtube 15,5W G13 T8 LifetimeVsTc

Lumen Maintenance Diagram - 15.5T8/MAS/48-850/IF25/P/DIM 25/1
