MasterClass InstantFit (UL Type-A) T8

Philips MasterClass, LED, T8, 900 mm, 8.5 W, 3000 K, 1350 lm, 70000 hour(s)

Name: Philips MasterClass, LED, T8, 900 mm, 8.5 W, 3000 K, 1350 lm, 70000 hour(s)
Brand: Philips
SKU: 929001967504
Availability: InStock

8.5T8/MAS/36-830/IF13/P/DIM 10/1

Popular downloads

Product leaflet pdf 633.4 kB
Install instructions pdf 5.3 MB
IES IES 4.1 kB
Product-Photographs-929001967504_EU ZIP
Product-Diagrams-929001967504_EU ZIP

View all downloads

Product Description

MasterClass, LED, T8, 900 mm, 8.5 W, 3000 K, 1350 lm, 70000 hour(s), 158 lm/W, G13, Plastic

Order code: 929001967504

Cap-Base
G13
Nominal lifetime
70,000 hour(s)
Switching Cycle
50,000
Lighting Technology
LED

Philips MasterClass, LED, T8, 900 mm, 8.5 W, 3000 K, 1350 lm, 70000 hour(s)

8.5T8/MAS/36-830/IF13/P/DIM 10/1

Product Description

Specifications

Medium Bi-Pin Fluorescent Tube, double-ended Frosted

General uniform lighting - 8.5T8/MAS/36-830/IF13/P/DIM 10/1

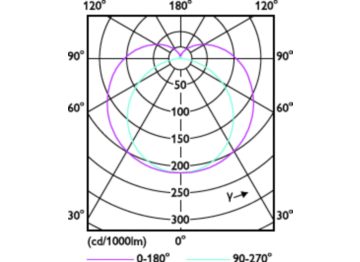

Light Distribution Diagram - 8.5T8/MAS/36-830/IF13/P/DIM 10/1

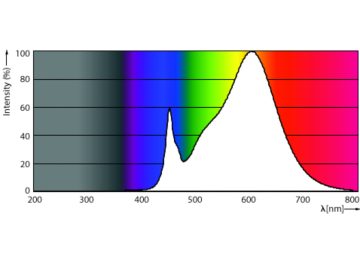

Spectral Power Distribution Colour - 8.5T8/MAS/36-830/IF13/P/DIM 10/1

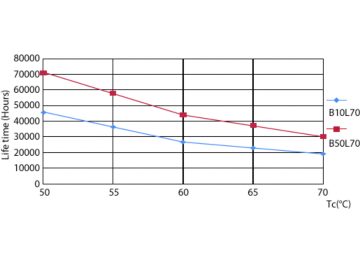

G13 4000K

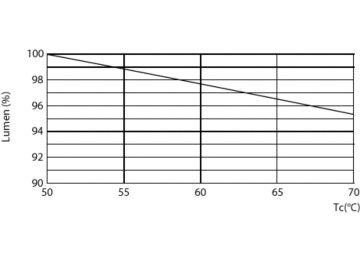

Lumen Maintenance Diagram - 8.5T8/MAS/36-830/IF13/P/DIM 10/1

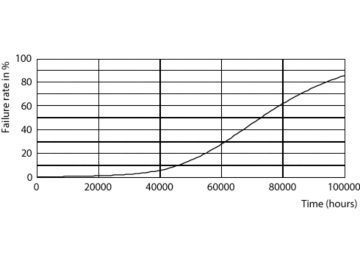

G13 4000K

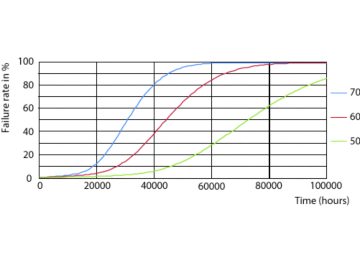

G13 4000K

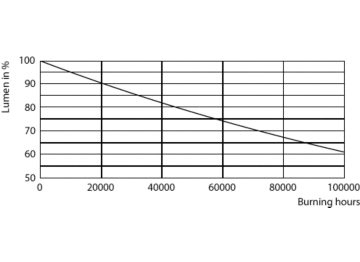

Lumen Maintenance Diagram - 8.5T8/MAS/36-830/IF13/P/DIM 10/1
