    Emergency Lighting Solution for Dimmable Type B TLED Lamps

    July 2021

    Innovative Design to Help You Meet Your Regulatory and Efficiency Challenges



    Bodine has your back.

    To comply with the new DLC Performance Standard 5.0 LED, luminaires must now incorporate dimming capabilities.  Luminaires that incorporate TLED lamps must also comply in order to achieve or maintain DLC certification.  To help you solve this challenge, Signify has released the new Philips MainsFit CorePro Type B TLED lamps.  However, small dimming inverters currently on the market are likely not compatible with this new lamp and you will need an emergency lighting solution.  To meet this need, the BTB15D is now available from Bodine, your most trusted partner for emergency lighting innovation.



    The BTB15D is the latest emergency lighting inverter specifically designed for the new phase cut dimmable Type B TLED lamps.  The BTB15D uses a patented AC phase cut dimming output to drive these new dimmable Type B TLED lamps during emergency conditions.  And though designed with new TLEDs in mind, the BTB15D is also compatible with any phase cut dimmable luminaire of 15 W or less.



    Small enough to easily be installed inside of the luminaire, the BTB15D is also available with a conduit option and is remote mountable for nearly all possible applications.  The BTB15D is suitable for factory or field installation in the US and Canada, suitable for indoor and damp locations, and is CEC Title 20 compliant.



    For more information on these new products, please visit the website at http://www.bodine.com/BTB15D or contact your local Bodine representative.

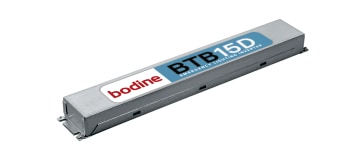

    Bodine - BTB15D Inverter

    Two models available:



    913702489201



    913702489301





    BTB015B2UK45L1PDI1



    BTB015B2UK45C1PDI1 (w/conduit)

    Key features:

    • Small size, in fixture, emergency solution for new dimmable Type B TLEDs, like the Philips MainsFit CorePro, which are now required to meet new DLC Performance Standards V5.0.
    • Designed for dimming Type B TLED’s but compatible with any phase-cut dimming luminaire or lamp rated 15 watts or less.
    • Works where a standard LED emergency driver will not.
    • Low profile enclosure, with and without conduit options for linear or downlight applications.
    • Suitable for factory or field installation in the US and Canada, suitable for indoor and damp locations, and CEC Title 20 compliant.
    • Remote mounting up to 150 feet.
