    New emergency lighting inverter coming in July

    May 2019

    ELI-S-10 is technology that fits

    Small size, automatic dimming in emergency mode

    The Bodine ELI-S-10 emergency lighting inverter is technology that fits. The 10VA unit’s size (390 mm x 58 mm x 30 mm) helps simplify installation and provide flexibility. Two models will be available: a conduit version and a non-conduit version. The non-conduit ELI-S-10 is designed to fit into your fixture, depending on fixture size and type.


    ELI-S-10 allows you to dim a higher power fixture to 10VA automatically in emergency mode. You won’t need a large inverter to work with your 100W fixture, and no dip switches need to be set.


    ELI-S-10 works in applications when a standard emergency LED driver will not, such as with an LED screw-base lamp or a tunable white luminaire with limited access to the complete light engine for emergency illumination.


    The inverter is UL Listed and California Energy Commission (CEC) Title 20 compliant for use in California. Targeted availability for ELI-S-10 is July 2019.

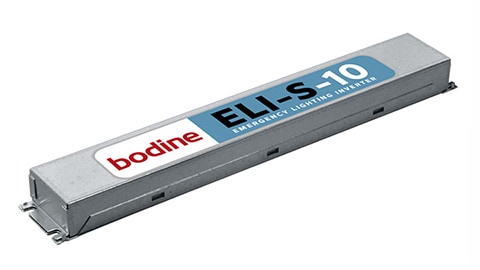

    ELI-S-10

    Highlights

    • 10VA line voltage sinusoidal inverter
    •  Compatible with single- and multi-channel LED dimming drivers, fluorescent ballasts, Type B TLEDs and LED screw-base lamps
    • Automatically regulated emergency operation to 10VA through the dimming AC driver
    • Case dimensions: 390 mm x 58 mm x 30 mm (15.34” L x 2.25” W x 1.16” H)
    • Automatic output voltage select
    • Small form factor for installation into fixtures (non-conduit model)
    • Meets California Energy Commission (CEC) Title 20 efficiency requirements
    • 90-minute emergency runtime, in compliance with NFPA 101® Life Safety Code®
    If you have any questions, please contact Bodine at 800-223-5728 for more information.
