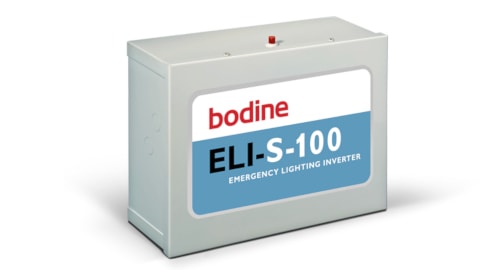

ELI-S-100


    100 W sine wave emergency lighting inverter
    with automatic dimming (0 to 10V) of the connected load
                                                                                                                                                                                                                    Note: For information (including specification and instruction sheets) on the previous, non-automatic dimming model, please contact the factory at 888-263-4638.



    Bodine - Emergency Lighting
    Bodine - ELI-S-100 Inverter
    file
    file

    Product summary

    UL Listed for the US and Canada
    UL924 Emergency Lighting Compliant
    Factory or Field Installation (Indoor and Damp)

    Illumination Time
    90 Minutes

    Maximum Load Power
    (including AC ballast/driver)
    100 W

    Warranty
    5 Years Full Coverage (not including battery)
    3 Year Battery warranty,
    plus 7 years additional pro-rating

    AC Input Current
    370 mA Max Charging

    Output 45 Max Charging
    Maximum output 100 VA
    Maximum load PF +/-0.75

    Test Switch
    2W-ITS

    Battery
    Maintenance-Free Sealed Lead Acid Battery

    Recharge Time
    24 Hours

    Charging Indicator Light Test Switch
    Integrated LED/test switch

    Temperature Rating (Ambient)
    32° F to 104° F (0° C to 40° C)

    Dimensions
    12.56” H x 9.81” W x 4.68” D
    (319 mm x 249 mm x 119 mm)

    Weight
    25 lbs. with batteries installed
