One- or two-lamp emergency;
Universal input voltage: 120 through 277 VAC, 50 or 60 Hz;
Universal input voltage: 120 through 277 VAC, 50 or 60 Hz;
|

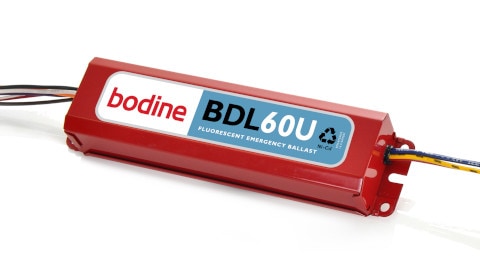

Model #
|
12NC
|
|
BDL60UREDM
|
913710857302
|
|
UL Listed
|
Factory or Field Installation
(Indoor and Damp) |
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
300 - 700 Lumens
|
|
Full Warranty
|
3 Years (NOT pro-rata)
|
|
Universal Input Voltage
|
120 Through 277 VAC, 50 or 60 Hz
|
|
AC Input Current
|
60 mA
|
|
AC Input Power Rating
|
5.0 Watts
|
|
Test Switch
|
Single Pole
|
|
Battery
|
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Battery Charging Current
|
280 mA
|
|
Recharge Time
|
24 Hour
|
|
Charging Indicator Light
|
LED
|
|
Temperature Rating (Ambient)
|
0°C to +50°C (32°F to 122°F)
|
|
Dimensions
|
9.4" x 2.4" x 1.5"
(238 mm x 60 mm x 38 mm) Mounting Center 8.9" (226 mm) |
|
Weight
|
2.5 lbs. (1.13 kg)
|
