MASTER LED-buis Netspanning/DC

Philips MASTER, LEDtube, T8, 1500 mm, 20 W, 58W TL-D, 4000 K, 3700 lm, CRI 80, 75000 hr, ELR/EL-DC

MAS LEDtube Mains/EL 1500mm 20W 840 T8

MAS-LEDtube-Mains-EL-T8-20251020-RTP

Populaire downloads

Productomschrijving

MASTER, LEDtube, T8, 1500 mm, 20 W, LED alternative to 58W TL-D, 4000 K, 3700 lm, CRI 80, 75000 hr, 185 lm/W, EEL B, G13, Kunststof, 40 %, 1500 mm, RG0, SDCM 6, PF 0.9, IP20, SVM 0.1, PstLM 0.1, Centrale gelijkstroomwerking centrale noodverlichting, Noodverlichting gereed (via compatibele batterijsetaccessoire)

Bestelcode: 929004306702

Volledige bestelcode: 872110311514000

Lampvoet
G13
Nominale levensduur
75.000 hr
Schakelcyclus
200.000
Lamptype
LEDtube
Meetreferentie van lichtstroom
Sphere
Garantieperiode
5 jaar

Brochures

Energie-efficiëntielabel

Energy Efficiency Label 929004306702 pdf 69.1 kB

Productinformatieblad

Product Information Sheet pdf 175.7 kB

Productbrochure

Localized commercial leaflet 929004306702 nl_BE pdf 838.5 kB

Brochures

Installatie-instructies

Checklist of Installation instructions for converting an existing emergency luminaire with LED Tube pdf 337.3 kB

Installatie-instructies

Localized_DE_Checklist of Installation instructions for converting an existing emergency luminaire with LED Tube pdf 342.6 kB

Installatie-instructies

Installation instructions (INI) pdf 6.1 MB

Beeldmateriaal

Product-Photographs-929004306702_EU

Meerdere materialen

Product-Diagrams-929004306702_EU

Meerdere materialen

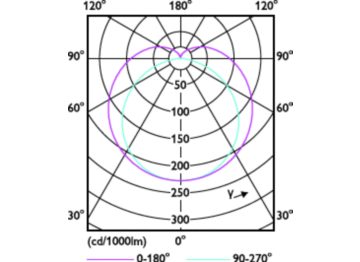

Lichttechnische files

IES

IES File - MAS LEDtube Mains/EL 1500mm 20W 840 T8 IES 45.2 kB

LDT

LDT File - MAS LEDtube Mains/EL 1500mm 20W 840 T8 ldt 34.2 kB

Overig

Milieuproductverklaring

EPD-Philips-MASTER-LED-tube-Mains-DC-FAM-103487795-Ref-929004306702 pdf 1.0 MB
