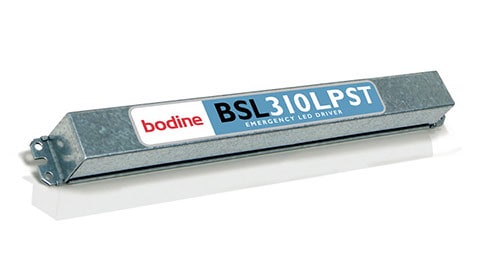

Low-Profile Self Testing LED Emergency Driver
Automatic code-compliant testing
Class 2 Output
Automatic code-compliant testing
Class 2 Output
|
Model #
|
12NC
|
|
BSL310LPSTM
|
913702478901
|
|
UL LISTED FOR US & CANADA
|
Listed to UL924 and tested to CSA 22.2, No. 141 For Field or Factory Installation (Indoor and Damp)
|
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
1000 Lumens @ 25°C *
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Universal Input Voltage
|
120-277 VAC, 50/60 Hz
|
|
AC Input Current
|
65 mA Maximum
|
|
AC Input Power Rating
|
4.0 W Maximum
|
|
Output Voltage
|
15 - 52 VDC
|
|
Output Power
|
10.0 W initial (regulated)
NFPA-101 and NEC 700.12 compliant |
|
Test SwitchTest Switch/Charging Indicator
|
Two-Wire Illuminated Test Switch (2W-ITS)**
|
|
Battery
|
High-Temperature,
Maintenance-Free Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Battery Charging Current
|
180 mA
|
|
Recharge Time
|
24 Hours
|
|
Temperature Rating
|
0°C to +55°C (32°F to 131°F)
Case: Tc (max): 65°C |
|
Dimensions
|
22.5” x 1.18” x 1.18”
(572 mm x 30 mm x 30 mm) Mounting Center 22.1” (561 mm) |
|
Weight
|
2.5 lbs. (1.12 kg) - metal case without conduit
|
