    BSL13B Cold


    Extreme Temperature Emergency LED Driver


    Extreme temperatures (-20°C to 55°C)

    13-watts output power

    Bodine - Emergency Lighting

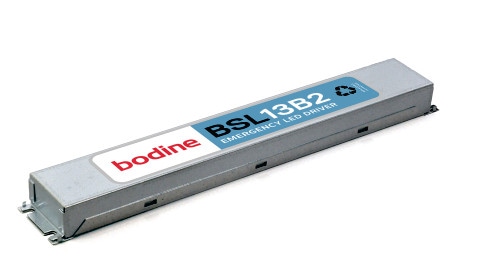

    Bodine - BSL13B2 Cold Emergency LED Driver

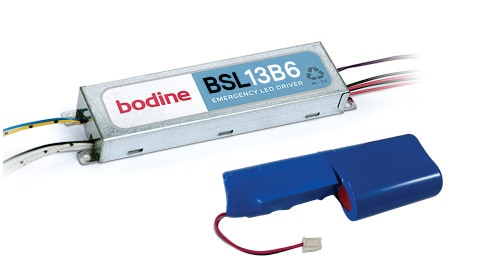

    Bodine - BSL13B6 Cold Emergency LED Driver
    UL Listed
    Meets CEC Title 20

    Variations:

    Integral or Separate Battery Options Available

    Product summary

    UL Listed for US and Canada
    Listed to UL924 and tested to CSA 22.2 No. 141
    For Field or Factory Installation
    (Indoor and Damp)

    Illumination Time
    90 Minutes

    Full Warranty
    5 Years (NOT pro-rata)

    Universal Input Voltage
    120-277 VAC, 50/60 Hz

    AC Input Current
    100 mA Maximum

    Output Voltage
    15-54 Vdc

    Output Power
    13.0 W

    Test Switch/Charging Indicator Light

    IP65 rated for ingress protection to dust and water jets.

    Test Switch Assembly is UL2043 Plenum-Rated.

    Battery

    High-Temperature, Maintenance-Free

    LFP Battery Technology

    Recharge Time
    24 Hours

    Temperature Rating

    Ambient: -20°C to +55°C (-4°F to 131°F)

    Case: Tc (Max): 65°C

    Dimensions

    B2 Enclosure: 15.34” x 2.25” x 1.18” (369 mm x 58 mm x 30 mm)

    Mounting Center 15.0” (356 mm)

    B6 Enclosure: 9.37” x 2.20” x 1.05” (238mm x 55.9mm x 26.7mm)

    Mounting Center 8.9” (226mm)

    Weight



    BSL13B2: 2.60 lbs

    BSL13 B6: 1.95 lbs
