Product
Home
Products
Bodine
Emergency Lighting Kits
Emergency Lighting Kits

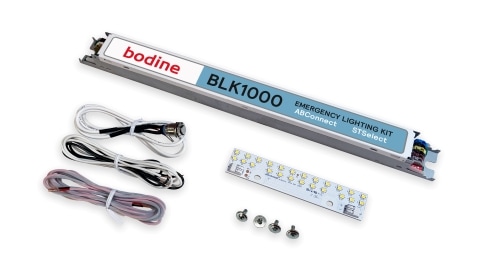

BODINE BLK1000T3UK55TS1 KIT
Back to family
Emergency Lighting Kits
BODINE BLK1000T3UK55TS1 KIT
Popular downloads
Install instructions
pdf
645.0 kB
View all downloads
Product Description
BODINE BLK1000T3UK55TS1 KIT
Order code:
913702492501
Specifications
Expand all
General Information
Buy American Compliant Products
No
Light Technical
Luminous Flux
1,000 lm
Operating and Electrical
Input Voltage
120 to 277 V
Line Frequency
50 or 60 Hz
Output Power (Nom)
6 W
Battery type
Lithiumion - NMC
Connection
Push-in connectors
Temperature
T-Case Maximum (Max)
145 °F
T-Case Maximum (Nom)
145 °F
Mechanical and Housing
Fixation point length distance (Nom)
13-13/16 inch
Overall length
14-1/8 inch
Overall width
1-3/16 inch
Overall height
1 inch
Dimensions (Height x Width x Depth)
25 x 30 x 358 mm
Net Weight (Piece)
0.736 lb
Emergency Operation
Emergency time
1.5 hour(s)
Self test
Yes
Approval and Application
Approval Marks
UL certificate
Energy Certifications
CEC Title 20
Ambient temperature range
0 to +55 °C
Product Data
Order product name
BODINE BLK1000T3UK55TS1 KIT
Full product name
BODINE BLK1000T3UK55TS1 KIT
Order code
913702492501
Material Nr. (12NC)
913702492501
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
663015112610
Numerator - Packs per outer box
10
EAN/UPC - Case
50663015112615
Downloads
Leaflets
Specifications
BLK1000 specification sheet
pdf 184.4 kB
View
Brochure
BLK family brochure
pdf 1.4 MB
View
Brochures
Install instructions
BLK1000 Instruction Sheet
pdf 645.0 kB
View
Visuals
CAD Drawings
BLK1000-Chassis.stp
stp 685.6 kB
Download
CAD Drawings
BLK1000-LED-Strip-5in-1000lm-840-LV1-sh-011.stp
stp 1.5 MB
Download
