TUV PL-S
Philips TUV PL-S 9W/4P
Product Description
Philips TUV PL-S 9W/4P
Order code:
927901904007
Full order code:
871150071083380
Specifications
Expand all
General Information

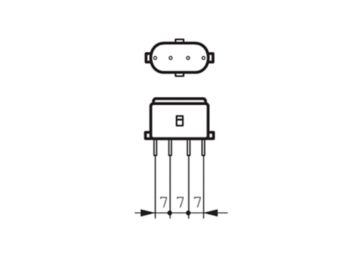

Cap-Base
2G7
Useful Life (Nom)
9,000 hour(s)
Light Technical
Depreciation at Useful Lifetime
20 %
Operating and Electrical
Power Consumption
8.6 W
Lamp Current (Nom)
0.17 A
Voltage (Nom)
60 V
Mechanical and Housing
Net Weight (Piece)
30.000 g
Approval and Application
Mercury (Hg) Content (Nom)
3.0 mg
CE mark
Yes
UV
UV-C Radiation at 100 hr
2.3 W
Product Data
Order product name
TUV PL-S 9W/4P
Full product name
TUV PL-S 9W/4P
Full product code
871150071083380
Order code
927901904007
Material Nr. (12NC)
927901904007
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8711500710833
Numerator - Packs per outer box
60
EAN/UPC - Case
8711500710864

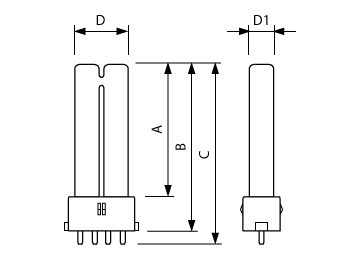

Installation diagrams
2G7
download
2G7
download
Photometrics
Spectral Power Distribution Colour - TUV PL-S 9W/4P
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 927901904007 en_ZA
pdf 369.3 kB
Brochures
Declaration of Conformity
Declaration of conformity - TUV PL-S 9W/4P
pdf 239.4 kB
Visuals
Product-Photographs-927901904007_EU
Multiple assets
Product-Diagrams-927901904007_EU
Multiple assets
