GreenPerform Waterproof Tubular G2

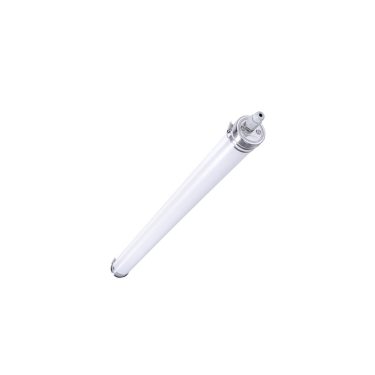

Philips GreenPerform Waterproof Tubular G2, 31 W, 5000 lm, 4000 K, Fixed Output
New
Product Description
Philips GreenPerform Waterproof Tubular G2, 31 W, 5000 lm, 4000 K, Fixed Output
Order code:
911401834388
Full order code:
872110333279099
Specifications
Expand all
General Information
Light source engine type
LED
Light Technical
Luminous Flux
5,000 lm
Correlated Color Temperature (Nom)
4000 K
Luminous Efficacy (rated) (Nom)
161 lm/W
Color rendering index (CRI)
80
Light source color
840 neutral white
Unified glare rating CEN
30
Operating and Electrical
Input Voltage
220-240 V
Line Frequency
50 or 60 Hz
Power Consumption
31 W
Power Factor (Fraction)
0.9
Number of products on MCB of 16 A type B
24
Protection class IEC
Safety class I
Controls and Dimming
Dimmable
No
Control interface
Fixed Output
Mechanical and Housing
Housing Material
Polycarbonate
Optical cover material
Polycarbonate
Housing Color
White RAL 9003
Optical cover finish
Opal
Ingress protection code
IP68 [Dust penetration-protected, pressure watertight]
Mech. impact protection code
IK10 [20 J vandal-resistant]
Optical cover type
Polycarbonate Diffuser
Net Weight (Piece)
1.240 kg
Approval and Application
CE mark
Yes
Ambient temperature range
-20 to +40 °C
Initial Performance (IEC Compliant)
Luminous flux tolerance
+/-10%
Power consumption tolerance
+/-10%
Product Data
Order product name
WT238C G2 LED50S/840 PSU L1200 TW GM
Full product name
WT238C G2 LED50S/840 PSU L1200 TW GM
Full product code
872110333279099
Order code
911401834388
Material Nr. (12NC)
911401834388
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8721103332790
Numerator - Packs per outer box
6
EAN/UPC - Case
8721103332905
Installation diagrams

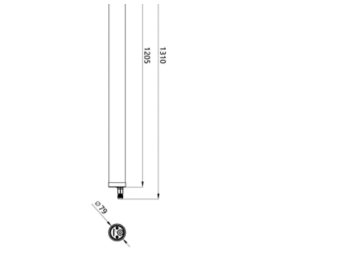

Dimension Drawing (without table) - WT238C G2 LED50S/840 PSU L1200 TW GM
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 911401834388 en_SA
pdf 334.1 kB
Brochures
Install instructions
INI-OF-GreenPerform-Waterproof-Tubular-G2-WT238C-GM
pdf 2.7 MB
Visuals
Product-Photographs-911401834388_EU
Multiple assets
Product-Diagrams-911401834388_EU
Multiple assets
Software plugins
IES
IES File - WT238C G2 LED50S/840 PSU L1200 TW GM
ies 14.3 kB
