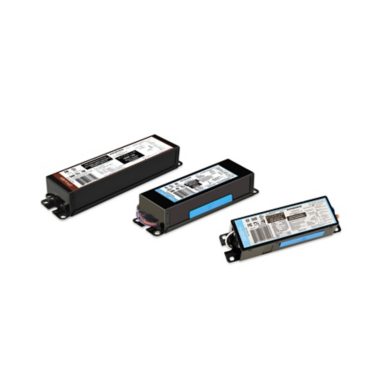

ADVANCE Outdoor and Industrial D4i and DALI-2

Description

The XitaniumLinear D4i driver brings the reliability of Advance drivers and connectivity of a standardized digital interface to enable wireless connected lighting systems for outdoor applications.The driver provides power and control on the same two-wire D4i interface to elimiate wiring complexity and need for additional power packs. The driver also provides an auxiliary power output to power radios for communication over longer transmission distances. The driver also provides energy and power reporting and other diagnostics to offer additional data capabilites to the lighting control system

Benefits

• Enable interoperability with diverse wireless sensors/network systems

• Reduce complexity and cost of fixture by eliminating auxiliary components ordinarily required for powering sensors, switching fixture off and monitoring energy use

• Suitable for use with both NEMA 7-pin and Zhaga 4-wire nodes and controls

• Future proof through standard interface to any compatible D4i sensor

• Rugged and designed to survive in extreme application conditions

• Improve thermal management further using features like DTL

• Dynadimmer allows automated night-time dimming without external controls

• CLO (Constant Lumen Output) to compensate LED light degradation over the lifetime of the fixture

Features

• Standard-compliant (ANSI C137.4 and DiiA) digital interface

• Integrated DALI bus power supply (Part 250)

• Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)

• Auxiliary power for sensors through digital connection, default ""on"" for connection to single sensing/RF device

• Continuous dimming down to 10%

• Low standby power below 0.25W (with no aux load) and below 0.5W (with 0.15W aux load)

• Drive current setting via SimpleSet wireless programming

• Several configurable features to add value beyond just producing light
