TUV Dynapower system
Philips TUV 260W XPT HO DIM UNP/20
Product Description
Philips TUV 260W XPT HO DIM UNP/20
Order code:
928104405112
Full order code:
871869645296700
Specifications
Expand all
General Information
Cap-Base
G5.4x17q
Operating Position
UNIVERSAL [Any or Universal (U)]
Useful Life (Nom)
12,000 hour(s)
Light Technical
Depreciation at Useful Lifetime
10 %
Arc Length O (Nom)
1,400 mm
Operating and Electrical
Power Consumption
260 W
Lamp Current (Nom)
2.7 A
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Net Weight (Piece)
470.000 g
UV
UV-C Radiation at 100 hr
98 W
Product Data
Order product name
TUV 260W XPT HO DIM UNP/20
Full product name
TUV 260W XPT HO DIM UNP/20
Full product code
871869645296700
Order code
928104405112
Material Nr. (12NC)
928104405112
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8718696452967
Numerator - Packs per outer box
20
EAN/UPC - Case
8718696452974
Installation diagrams
any
download

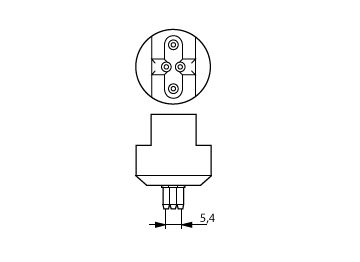

G5.4x17q
download
Dimension Drawing (with table) - TUV 260W XPT HO DIM UNP/20
download
Photometrics
Spectral Power Distribution Colour - TUV 260W XPT HO DIM UNP/20
download
Performance diagrams
Lumen Maintenance Diagram - TUV 260W XPT HO DIM UNP/20
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 928104405112 en_SG
pdf 950.6 kB
Visuals
Product-Photographs-928104405112_EU
Multiple assets
Product-Diagrams-928104405112_EU
Multiple assets
