MASTER PL-L 4 Pin
Philips MASTER PL-L 32W/865/4P 1CT/25
Product Description
Philips MASTER PL-L 32W/865/4P 1CT/25
Order code:
927907986501
Full order code:
871150027922400
Specifications
Expand all
General Information
Cap-Base
2G11
Light Technical
Color Code
865 [CCT of 6500K]
Luminous Flux
2,700 lm
Color Designation
Cool Daylight
Correlated Color Temperature (Nom)
6500 K
Luminous Efficacy (rated) (Nom)
87 lm/W
Color rendering index (CRI)
79
Operating and Electrical
Power Consumption
31 W
Lamp Current (Nom)
0.32 A
Voltage (Nom)
95 V
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Net Weight (Piece)
104.000 g
Approval and Application
Mercury (Hg) Content (Nom)
2.0 mg
Product Data
Order product name
MASTER PL-L 32W/865/4P 1CT/25
Full product name
MASTER PL-L 32W/865/4P 1CT/25
Full product code
871150027922400
Order code
927907986501
Material Nr. (12NC)
927907986501
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8711500279224
Numerator - Packs per outer box
25
EAN/UPC - Case
8711500279262

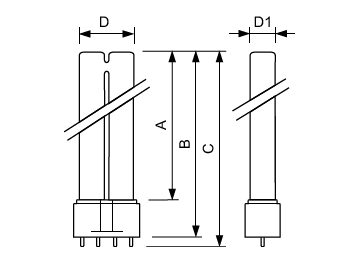

Installation diagrams
2G11
download
2G11
download
Photometrics

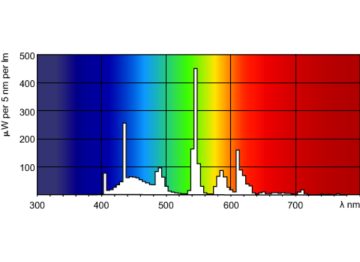

Spectral Power Distribution Colour - MASTER PL-L 32W/865/4P 1CT/25
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 927907986501 en_AA
pdf 478.2 kB
Visuals
Product-Photographs-927907986501_EU
Multiple assets
Product-Diagrams-927907986501_EU
Multiple assets
