The official Philips lighting catalog has a new home!
As the manufacturer of Philips products, Signify.com is the new home of the Philips lighting catalog, alongside Dynalite and other Signify brands.
Trunklinea Plus
Philips Trunklinea Plus, 4 W, 300 lm, 6500 K
Product Description
Philips Trunklinea Plus, 4 W, 300 lm, 6500 K
Order code:
911401868080
Full order code:
871016335538299
Specifications
Expand all
General Information
Light source engine type
LED
Light Technical
Luminous Flux
300 lm
Correlated Color Temperature (Nom)
6500 K
Luminous Efficacy (rated) (Nom)
80 lm/W
Color rendering index (CRI)
>70
Light source color
730 warm white
Operating and Electrical
Input Voltage
220 to 240 V
Line Frequency
50 or 60 Hz
Power Consumption
4 W
Power Factor (Fraction)
0.5
Number of products on MCB of 16 A type B
8
Protection class IEC
Safety class II
Controls and Dimming
Dimmable
No
Control interface
-
Mechanical and Housing
Housing Material
Polycarbonate
Optical cover material
Polycarbonate
Housing Color
White
Optical cover finish
Opal
Overall length
325 mm
Overall width
21 mm
Overall height
32.3 mm
Dimensions (Height x Width x Depth)
32 x 21 x 325 mm
Ingress protection code
IP20 [Finger-protected]
Mech. impact protection code
IK02 [0.2 J standard]
Optical cover type
Opal diffuser in polycarbonate cover
Net Weight (Piece)
0.050 kg
Approval and Application
CE mark
No
Ambient temperature range
-20 to +40 °C
Initial Performance (IEC Compliant)
Luminous flux tolerance
+/-10%
Power consumption tolerance
+/-10%
Product Data
Order product name
31600 Trunklinea Plus LED3/WW L300 GM
Full product name
31600 Trunklinea Plus LED3/WW L300 GM
Full product code
871016335538299
Order code
911401868080
Material Nr. (12NC)
911401868080
Numerator - Quantity Per Pack
1
EAN/UPC - Product/Case
8710163355382
Numerator - Packs per outer box
40
EAN/UPC - Case
8710163355627

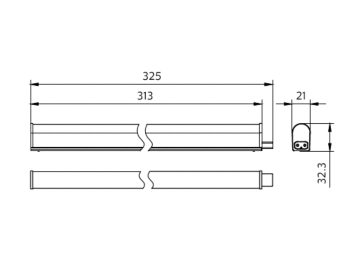

Installation diagrams
Trunklinea Plus BattenL300
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 911401868080 en_SG
pdf 336.2 kB
Brochures
Install instructions
Trunklinea Plus Batten
pdf 568.8 kB
Visuals
Product-Photographs-911401868080_EU
Multiple assets
Product-Diagrams-911401868080_EU
Multiple assets
Software plugins
IES
IES File - 31600 Trunklinea Plus LED3/WW L300 GM
ies 8.4 kB
