Solar Panel Sub System
Philips 195Wp 41V Monocrystalline PV panel
Product Description
Philips 195Wp 41V Monocrystalline PV panel
Order code:
911401856902
Specifications
Expand all
General Information
Value ladder
Value
Operating and Electrical
Panel type
Mono crystalline
Panel voltage
41 V
Panel peak wattage
195 W
Mechanical and Housing
Overall length
1,515 mm
Overall width
680 mm
Overall height
3.5 mm
Dimensions (Height x Width x Depth)
4 x 680 x 1515 mm
Net Weight (Piece)
13.990 kg
Approval and Application
Ambient temperature range
-40 °C to 85 °C
Product Data
Order product name
195Wp 41V Monocrystalline PV panel
Full product name
195Wp 41V Monocrystalline PV panel
Order code
911401856902
Material Nr. (12NC)
911401856902
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
31
Installation diagrams

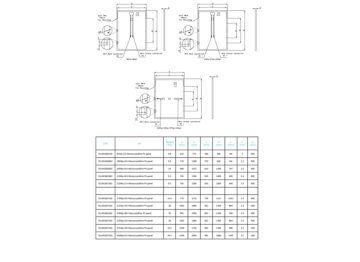

Dimension Drawing (without table) - 195Wp 41V Monocrystalline PV panel
download
Downloads
Leaflets
Product leaflet
Localized commercial leaflet 911401856902 en_EG
pdf 489.1 kB
Visuals
Product-Photographs-911401856902_EU
Multiple assets
Product-Diagrams-911401856902_EU
Multiple assets
