    Flex Compact, eW

    Exterior flexible strands of high-intensity nodes with single temperature white light

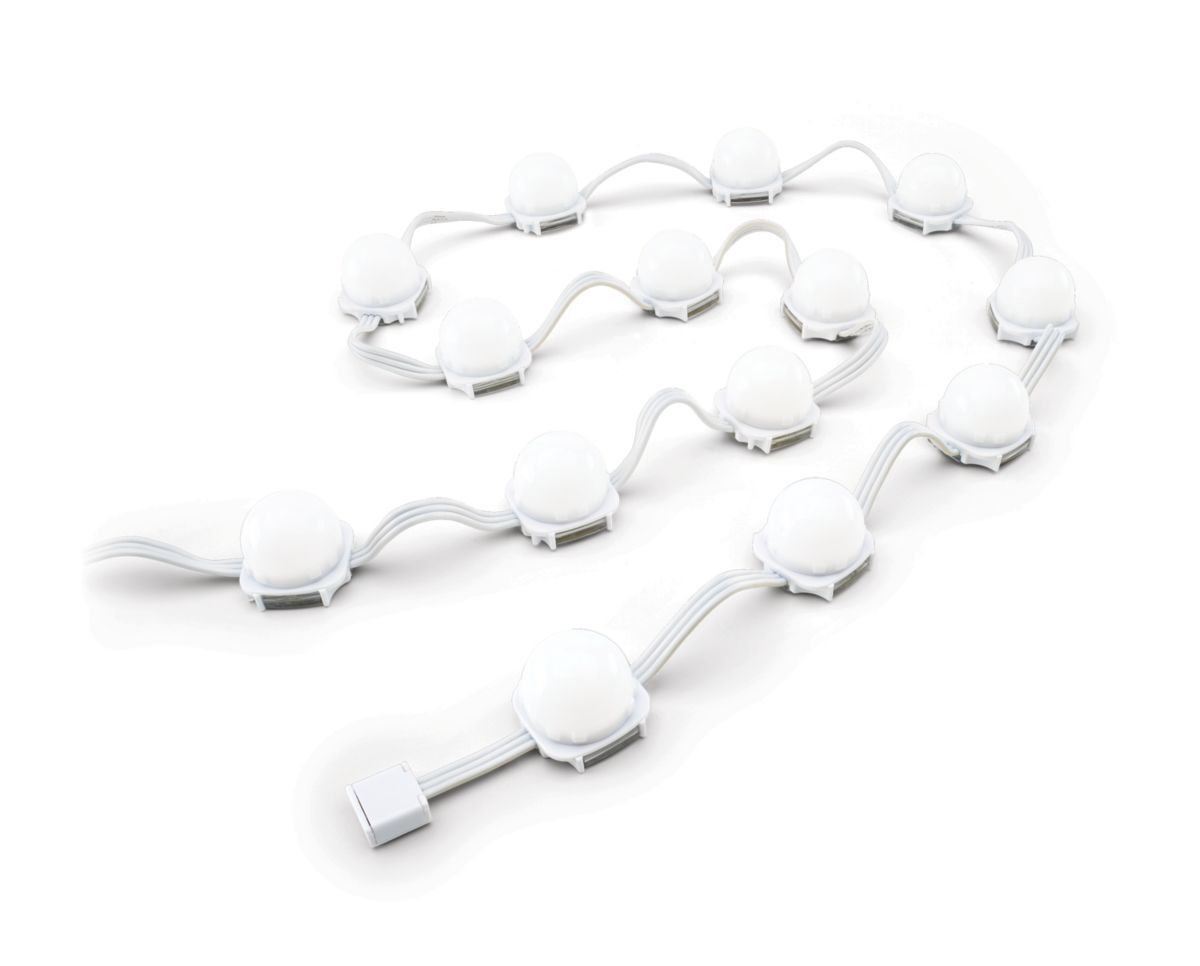

    Flex Compact, eW is a versatile strand of 50 individually controllable LED nodes. The flexible form factor allows dynamic points of white light to be installed across nearly any interior or exterior surface, including walls, ceilings, floors, three-dimensional sculptures, and set pieces. Flex Compact, eW can be used to display video.
    Product Family Guide
    More downloads
    • Toggle view

    Product Summary and Specification Sheets

    Features

    • Daylight visible
      At full brightness, each node produces light output of up to 89.6 candela and 129,758 nits.

      •

    • Outdoor rated
      Fully sealed for maximum node life and IP66-rated for outdoor applications.

      •

    • Multiple lens options
      Standard clear flat, translucent dome, and narrow beam lenses. Optional translucent flat, clear dome, narrow beam, semi-frosted flat, and semi-frosted dome lenses are available.

      •

    • Custom leader cables
      Custom leader cable lengths are available in addition to standard cables of 7.6 m (25 ft), 15.2 m (50 ft), and 30.5 m (100 ft).

      •

    • Superior light output
      Flex Compact, eW strands consist of 50 individually controllable, high-intensity LED nodes. Each node produces solid white light output of up to 89.6 candela.
    • Adaptable mounting
      Strands can be mounted directly to a surface, like traditional string lights. Detachable leader cables in multiple lengths allow you to install strings at the appropriate distance from power/data supplies. Optional mounting tracks ensure straight linear runs, while snap-on spacers hide cabling and mounting hardware. Single node mounts can be positioned individually as anchor points for installations with uneven node spacing or complex geometries.

      •

    • Cost-effective video displays
      Flexible form factor, offering maximum lighting control at 50 W per strand, accommodates two- and three-dimensional video displays. White nodes enable classic black and white video or reverse (shadow) video.

      •

    • Standard and custom lengths and node spacing
      Flex Compact, eW strands are available with standard on-center node spacing of 75 mm (3 in) or 610 mm (24 in) along a three-wire, 16 AWG cable. Contact us for custom node quantity and node spacing options.

      •

    • Industry-leading controls
      Flex Compact, eW works seamlessly with the Color Kinetics full range of controllers, including Light System Manager, Video System Manager Pro, iPlayer 3, Antumbra iColor Keypad, and ColorDial Pro, as well as third-party DMX controllers.

      •
