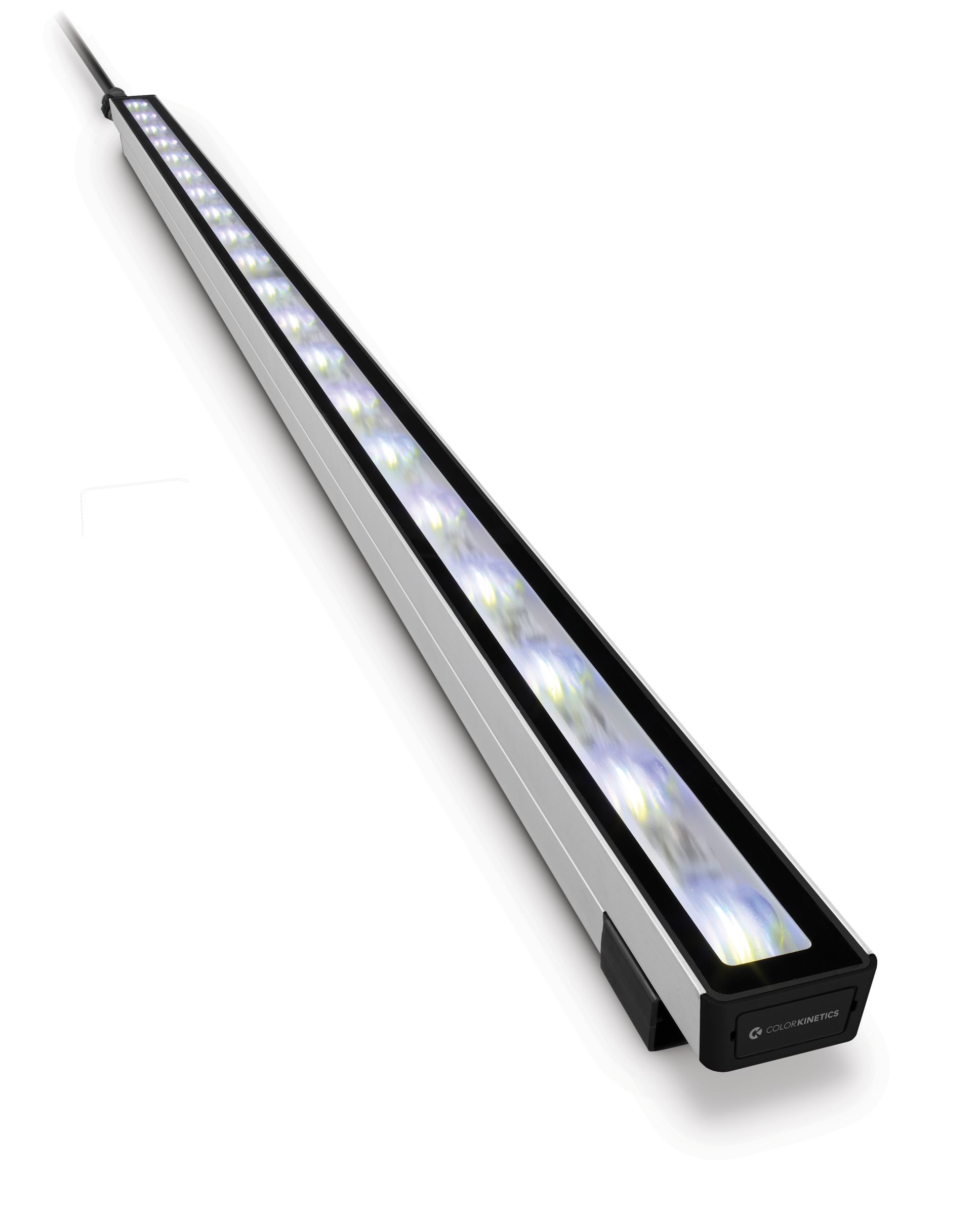

Graze Compact Powercore, IntelliHue

Exterior compact linear grazing luminaire with intelligent white and color light

View all 32 products

Downloads

Additional Literature

Product Guide Graze - Illuminate the defining details PDF 5.6 MB
Additional literature Graze Compact Powercore IntelliHue Product Overview PDF 118.1 kB
Install instructions Graze Compact Powercore Installation Instructions PDF 3.1 MB

Visuals

Photometry/BIM Files

Family-IES-Graze-Compact-Powercore,-IntelliHue

More Information

Related website Visit the Color Kinetics website

Product family information

Graze Compact is a high-performance, exterior linear luminaire designed to highlight architectural features like molding details, archways and windows up to two stories high. Graze Compact IntelliHue utilizes Color Kinetics IntelliHue technology to produce millions of saturated colors, pastels, and high-quality white light, in the same precisely controllable luminaire. Multiple luminaire lengths and beam angles support a large range of façade or surface illumination applications. The brand new low-profile housing, connectorized cabling, a universal power input range, and direct line voltage make Graze Compact luminaires easy to install and operate.

Benefits

Available in four standard lengths (1 ft, 2 ft, 3 ft, and 4 ft), and four standard 10° x 60°, 30° x 60°, 60° x 60°, and 100° x 100° beam angles

Multiple channels of LED light sources combine to produce a full spectrum of precisely controllable light

Improves color consistency between all LED luminaires in a family with Chromasync technology

Features

Tailor light output to specific applications—Available in four standard lengths (1 ft, 2 ft, 3 ft, and 4 ft), and four standard 10° x 60°, 30° x 60°, 60° x 60°, and 100° x 100° beam angles.

Ultra compact form factor—Graze Compact’s ultra-low profile is half the size of Graze, allowing it to fit discretely into almost any layout, from simple to elaborate.

Innovative optical design features fully mixed light directly out of the luminaire. This allows for smaller setbacks than many other luminaires.

Color-changing and high-quality white light from the same luminiare—IntelliHue is an advanced approach to color mixing that enables high-quality intelligent color and white light from a single luminaire. Multiple channels of LED light sources are mixed directly out of the luminaire to produce a full spectrum of precisely controllable light, including millions of saturated colors, pastels, and uniform white light with CRI of greater than 80 in the 2700 K to 4000 K range.

Improve color consistency between all LED luminaires in a family with Chromasync technology. During the manufacturing process a calibrated light measurement device creates an algorithm to define a common color gamut for an entire family of LED luminaires. When Chromasync is enabled, color consistency between luminaires is achieved without having to manually adjust color points on each luminaire.

Applications

Grazing up to 6 m (20 ft)

Graze Compact Powercore, IntelliHue

Graze Compact Powercore, IntelliHue

Product family information

Benefits

Features

Applications
